Omniwide Film

Omniwide Film laminated onto the CF polarizer, can redirect light to expand the viewing angle and improve optical display performance. This series is widely used in LCD and OLED products.

Key benefits of Omniwide Film :

  • Apply to the different view angle
  • Match the current lamination process
  • No extra amortization needed for panel makers
  • Roll-to-roll continuous nano-imprint technology

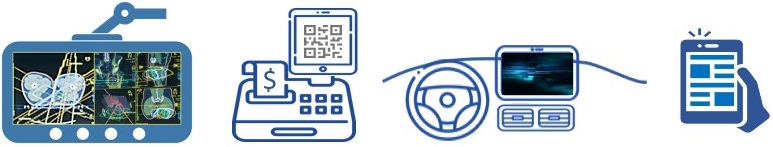

Application

Adopted in medical, Industrial, automotive, consumer, e-paper and privacy applications.

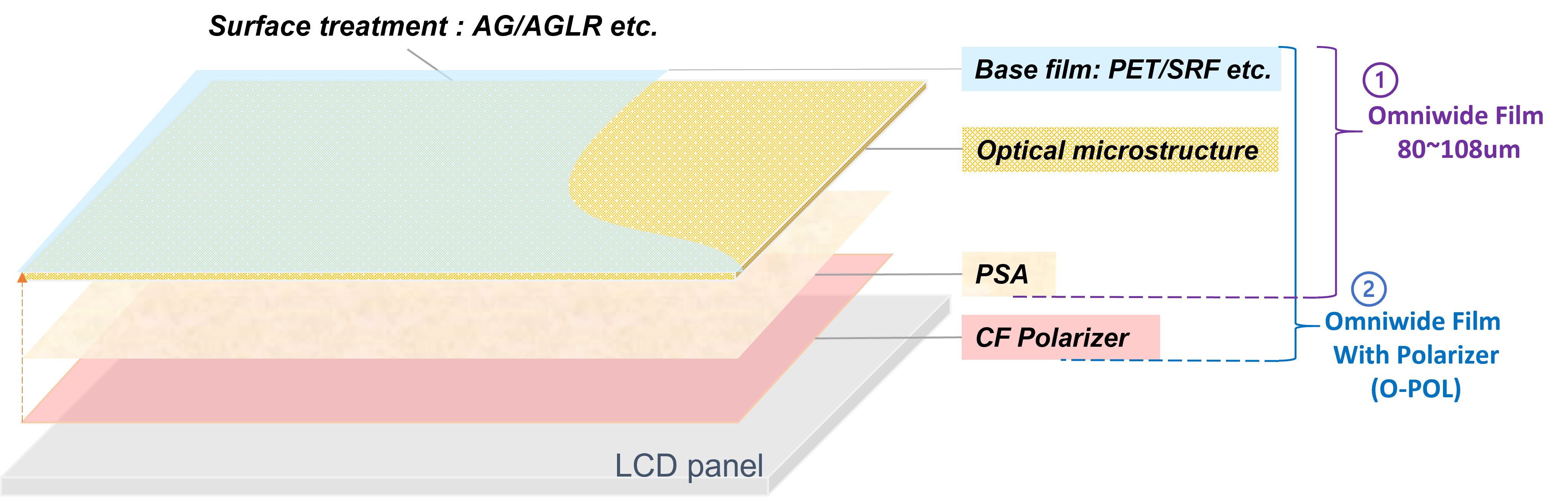

Structure

CMVT offers multiple substrates and product combinations to meet customer design and production needs.

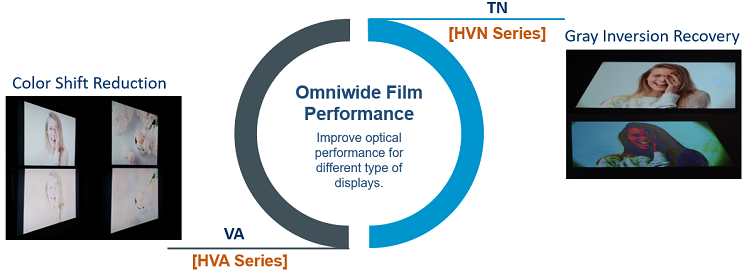

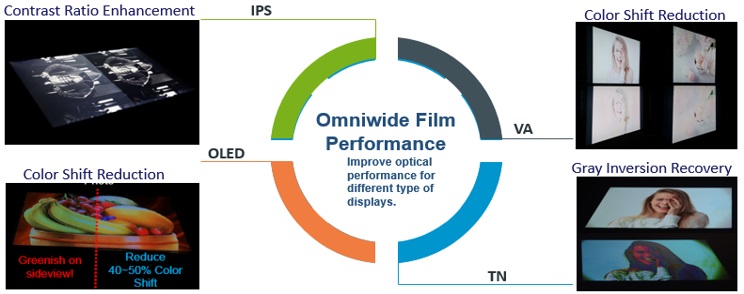

Product Series Applied Display Compensation Features Status
HVN TN mode LCD
  • Improve Gray Scale Inversion
MP
HVA VA mode LCD
  • Suppress Light Leakage
  • Lower Color Shift
  • Increase Brightness Viewing Angle
HVS IPS mode LCD
  • Suppress Light Leakage
  • Lower Color Shift
  • Increase View Angle Contrast Ratio
  • Increase Brightness Viewing Angle
Under developing
HVD OLED
  • Improve Color Shift
